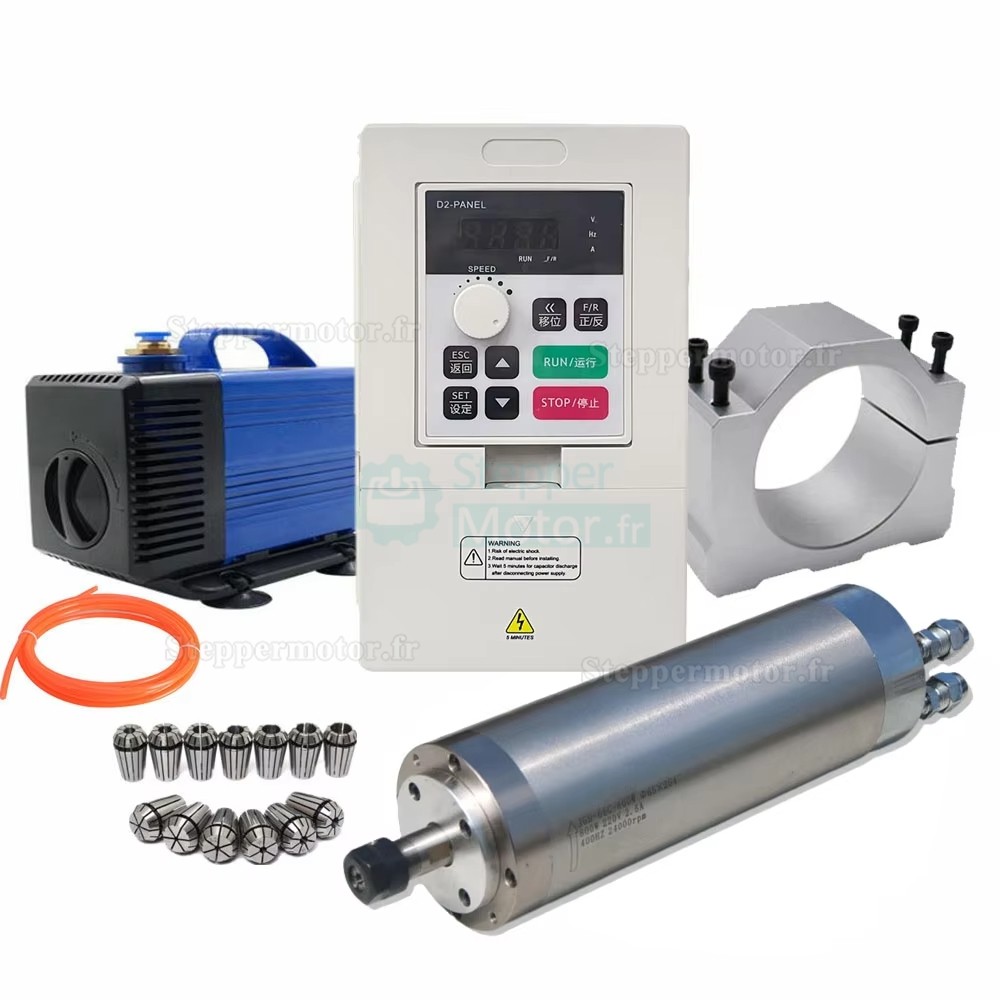

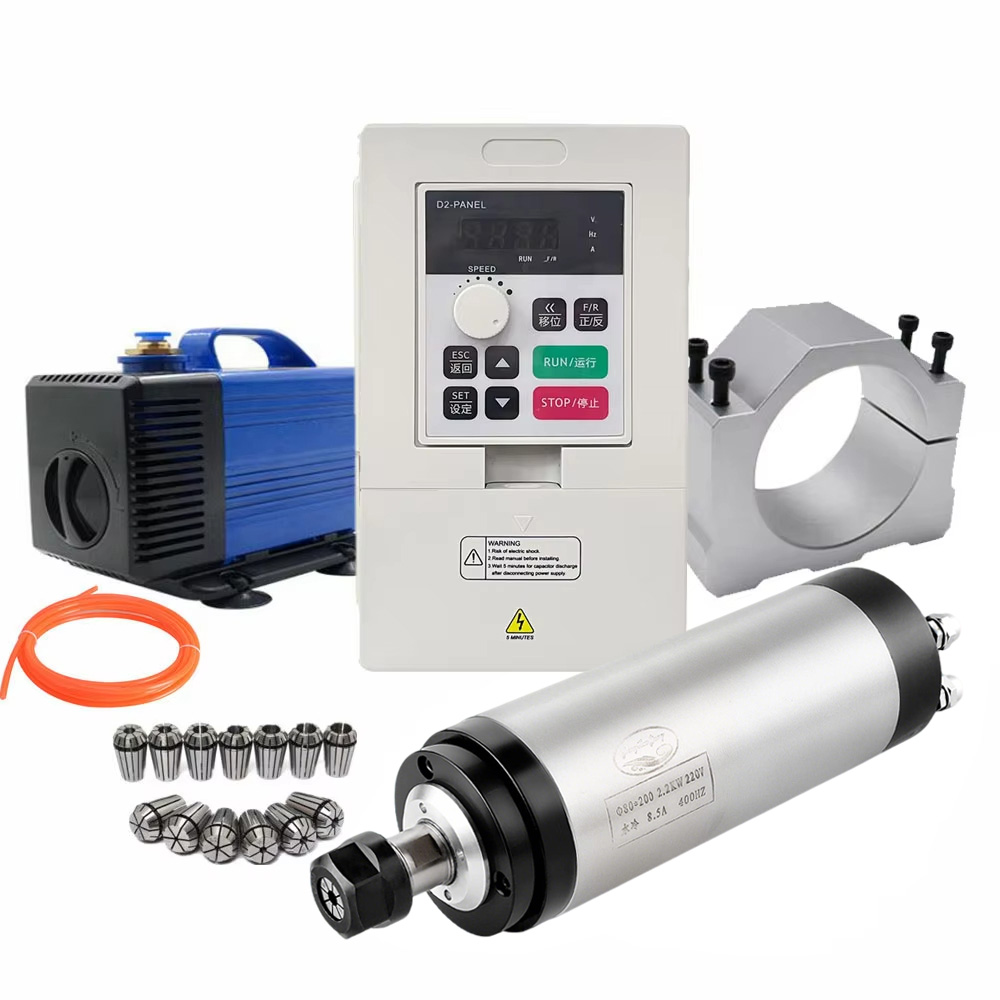

2,2kW 110V/220V/380V Kit moteur de broche refroidi par eau OSP001699 avec variateur de fréquence (VFD) et 13 pièces pinces ER20 et support

2,2kW 110V/220V/380V Kit moteur de broche refroidi par eau OSP001699 avec variateur de fréquence (VFD) et 13 pièces pinces ER20 et support

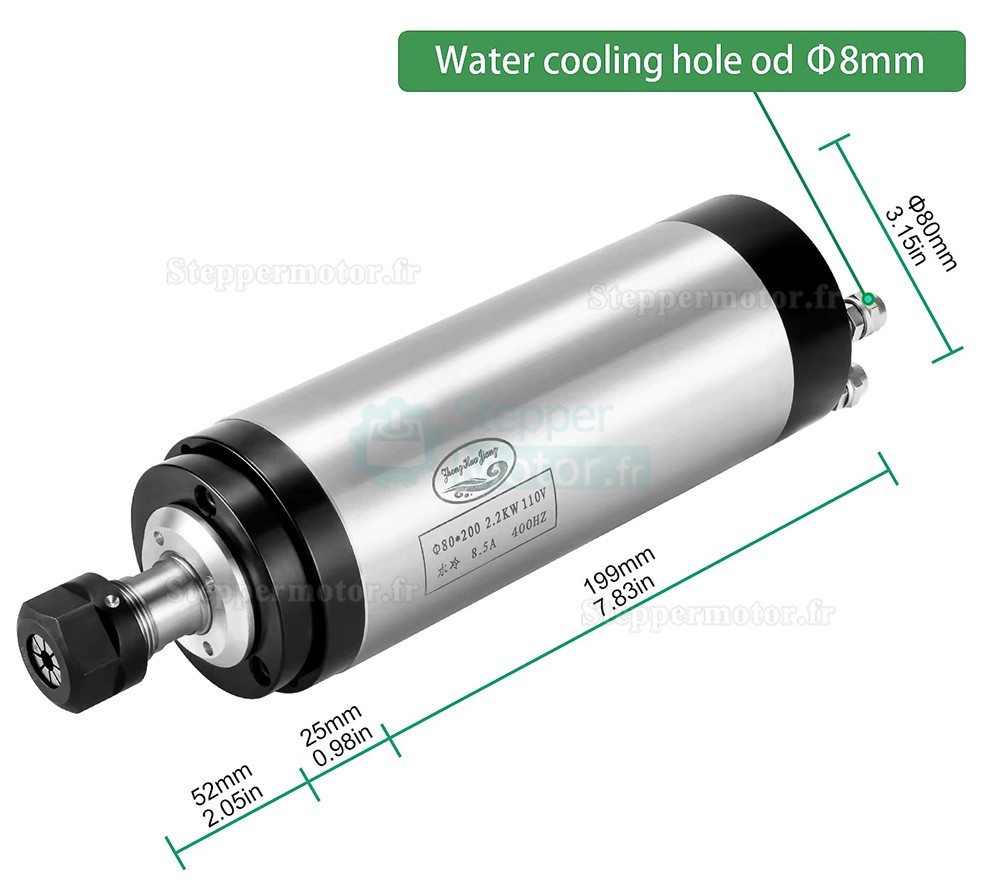

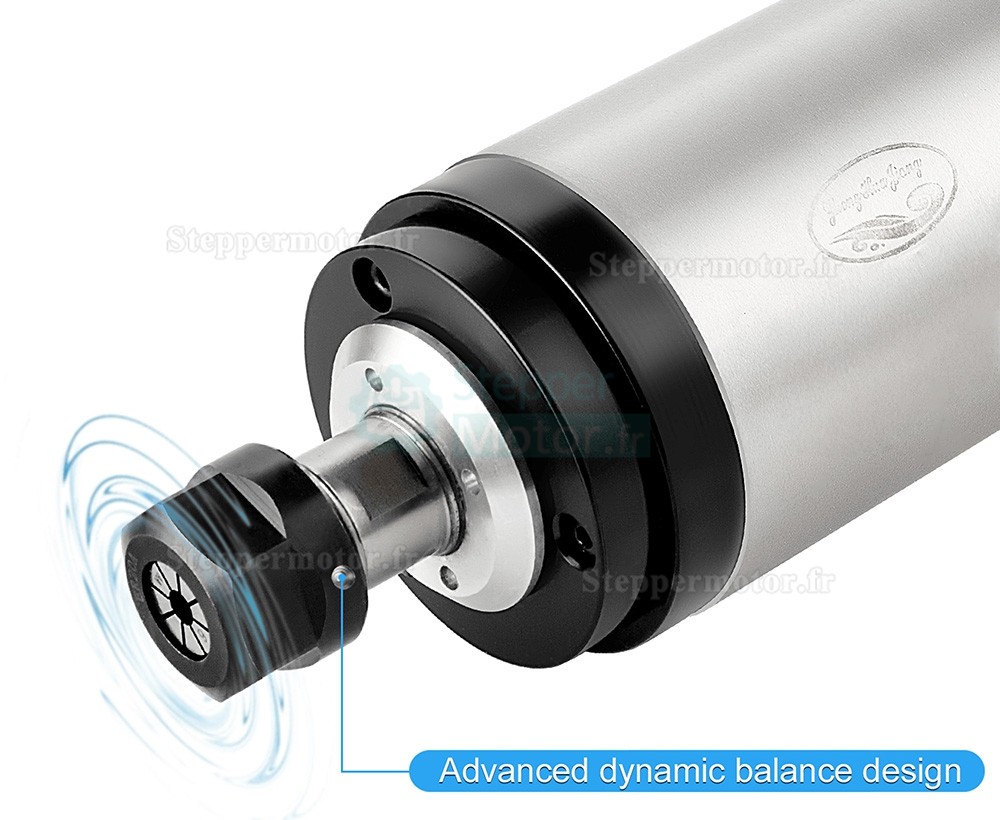

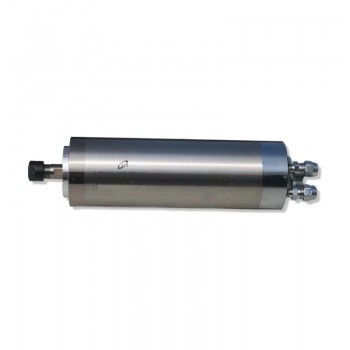

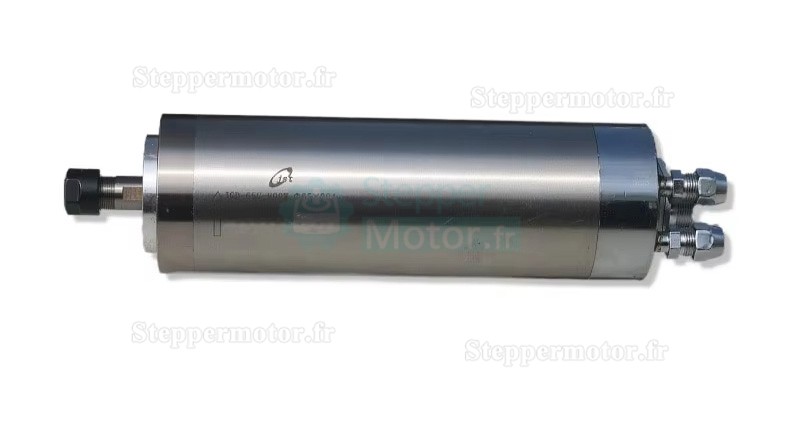

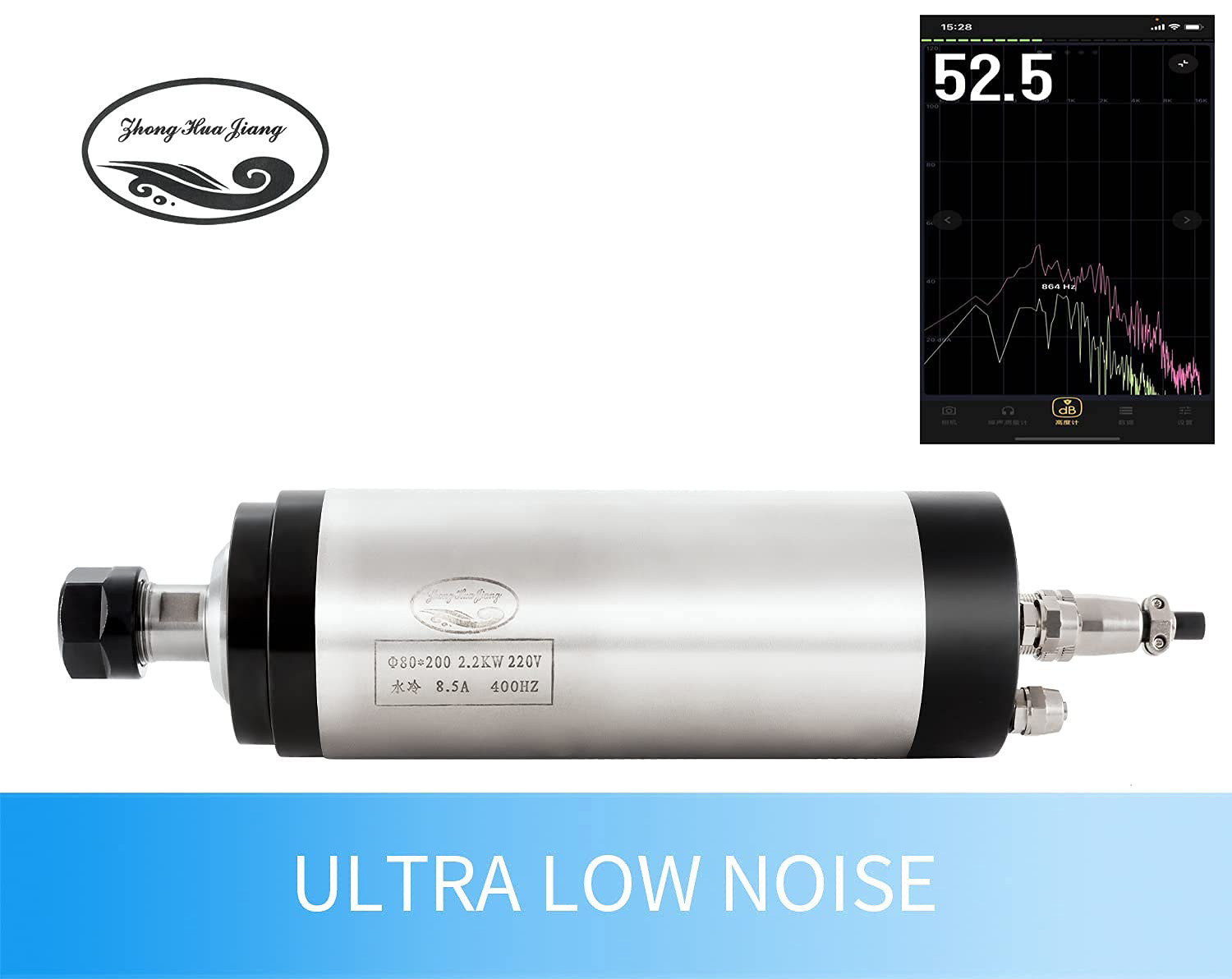

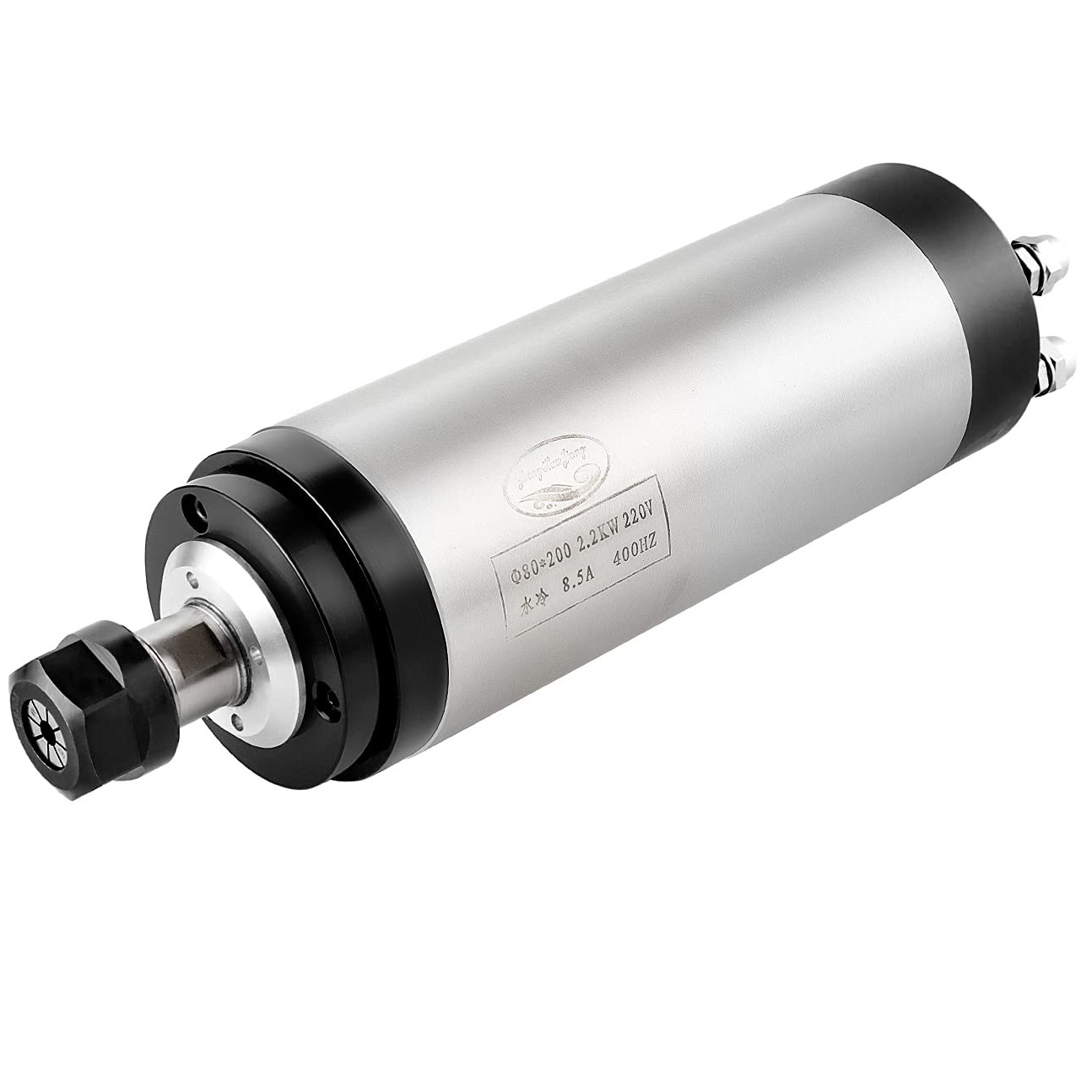

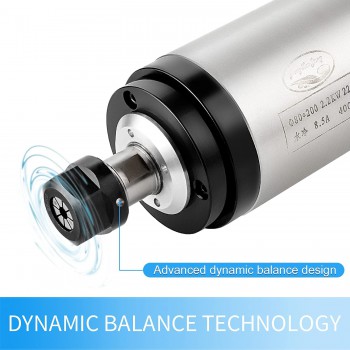

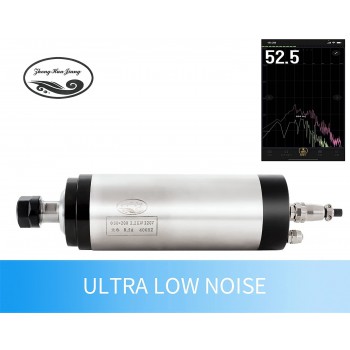

Spindle Motor Specifications:
Model: 80*2.2KW ER20 Air Cooling
Rated Power: 2.2 KW
Operating Voltage: 110V / 220V / 380V (Wide Range Compatible)
Current: 8.5 A
Frequency: 400 Hz (High-Speed Operation)
Collet Type: ER20
Cooling Method: Air Cooling
Poids: 6.0 KG
Maximum torque(Nm):1.2Nm

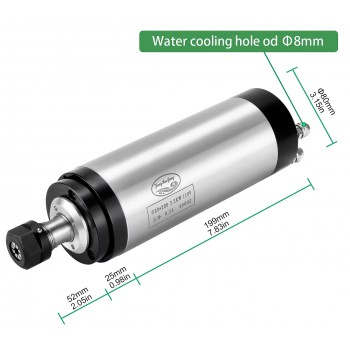

Diameter: 80mm
Speed:24000tr/min

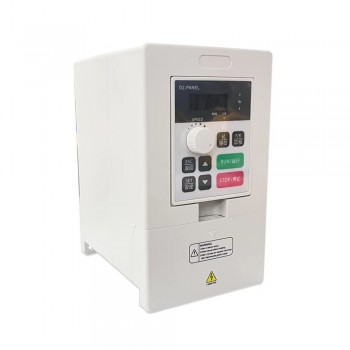

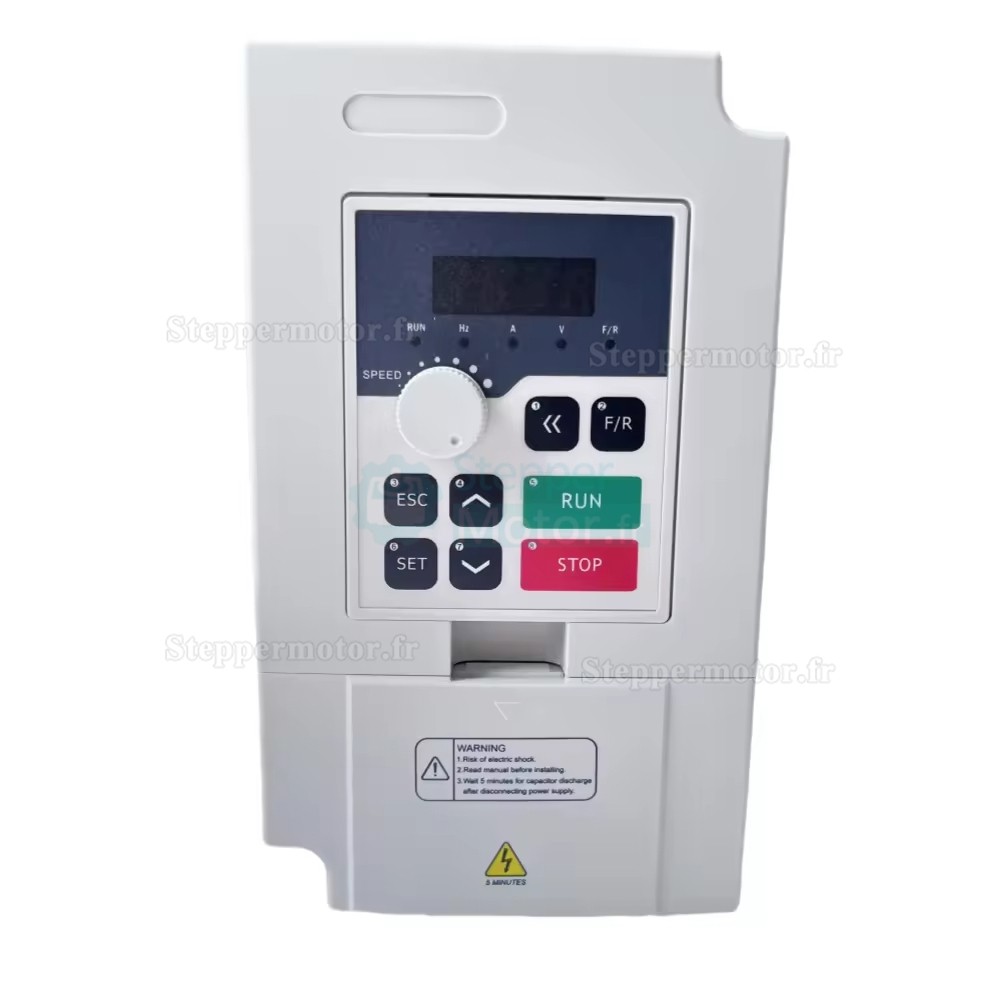

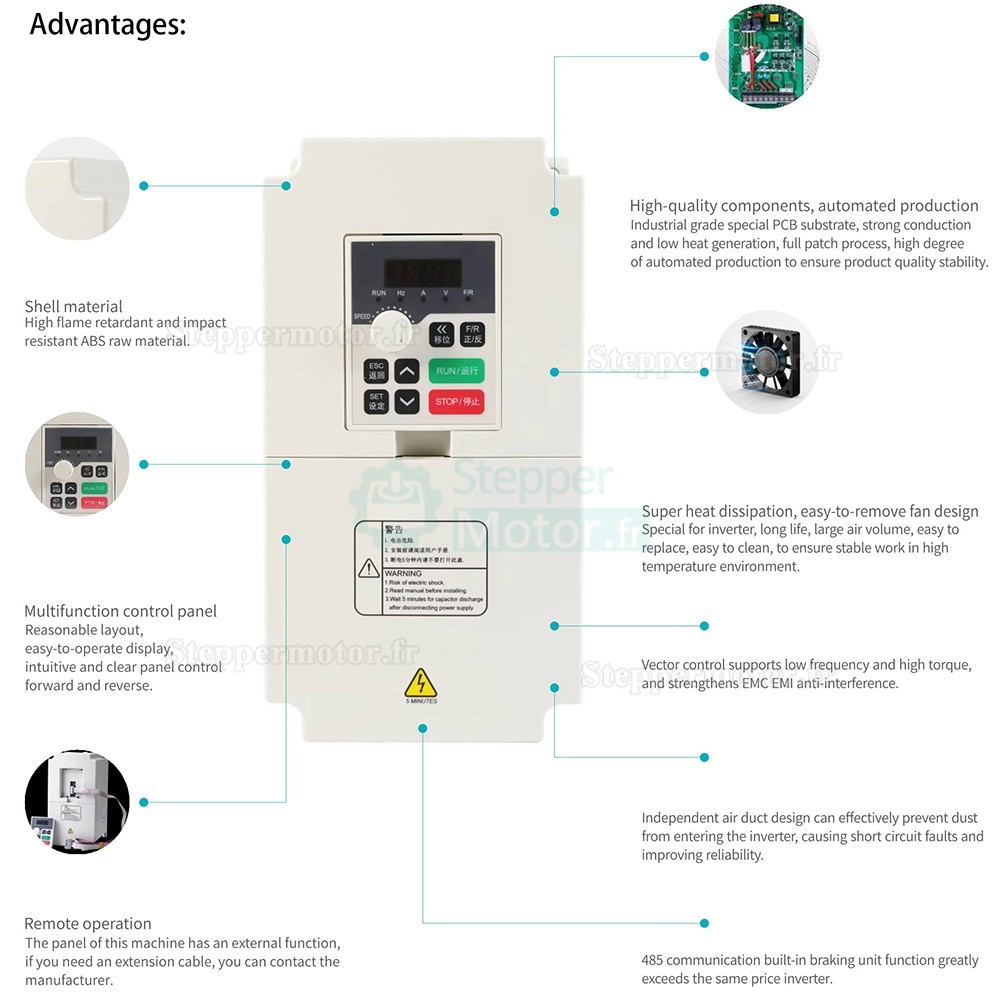

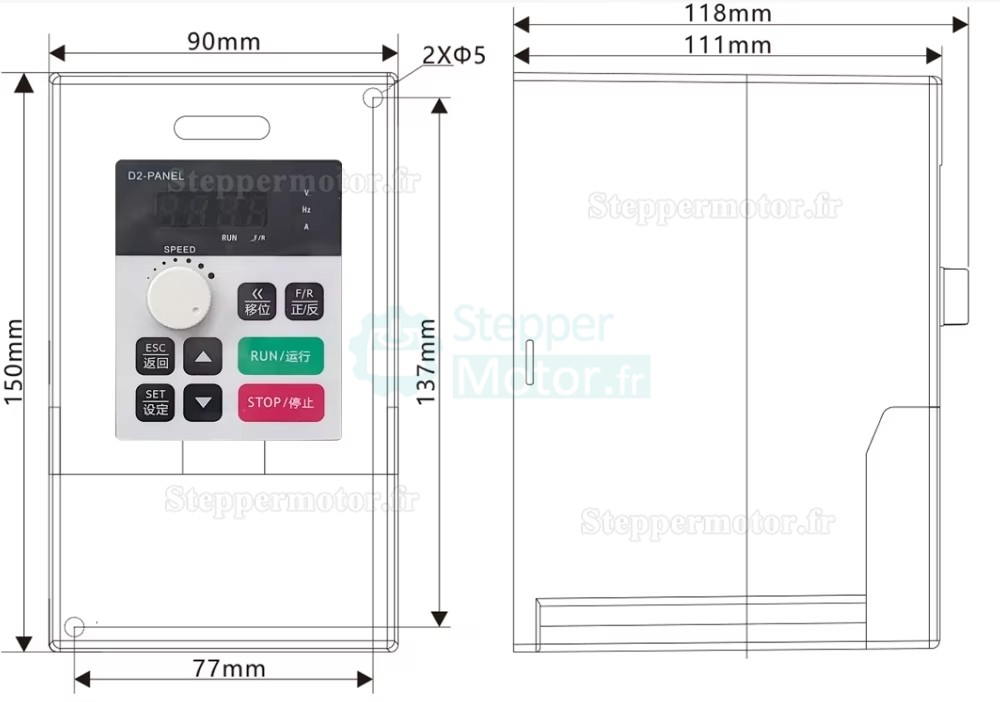

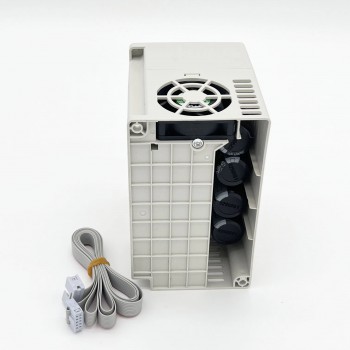

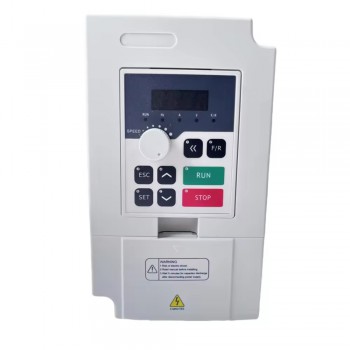

Frequency Inverter (VFD) Specifications:
Model: H100-2.2C2 / H100-2.2S2
Type: DC/AC Frequency Inverter
Power Rating: 2.2 KW
Input Voltage: 220V AC Input Phase: Single Phase
Rated Input Frequency: 50Hz / 60Hz
Output Phase: Triple Phase
Output Voltage: 0-220V AC
Output Frequency Range: 0-1000 Hz
Output Current: 11A
Control Interface: Modbus Network
Certification: CE
Poids: 1.5 kg
Project Name: H100 Series
Control method: V/F

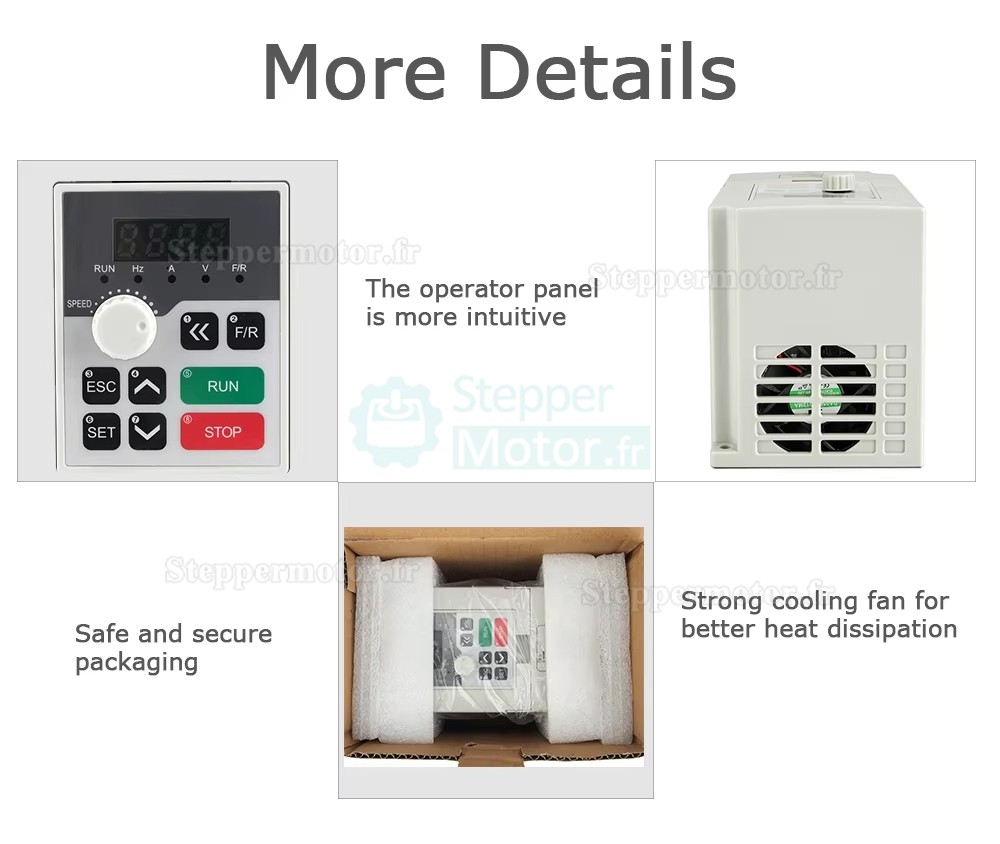

Four-digit display and status indicator lights: Displays frequency, current, rotational speed, voltage, counter, temperature, forward/reverse rotation status, and faults.
Communication Control: RS-485
Température de fonctionnement: -10~40℃
Humidity: 0–95% relative humidity (no condensation)
Vibration: Below 0.5G

Included Accessories:
Spindle Clamp: 80MM Diameter Clamp with 4 Screws for secure mounting.
Collet Set: 13-Piece ER20 Collet Set for versatile tool holding.
Collet Sizes (13 pcs): 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm.
